A water treatment system to eliminate contaminants, hard water, chlorine and other chemicals and odors bringing your water to a clean purified state, then customize your water to fit you needs!
-
Accurately add minerals back to your water
-
Adjust pH to your needs with precision
-
Monitor all aspects of your water treatment system incoming and out
-
Patented & UL Listed
-
Made in the U.S.A

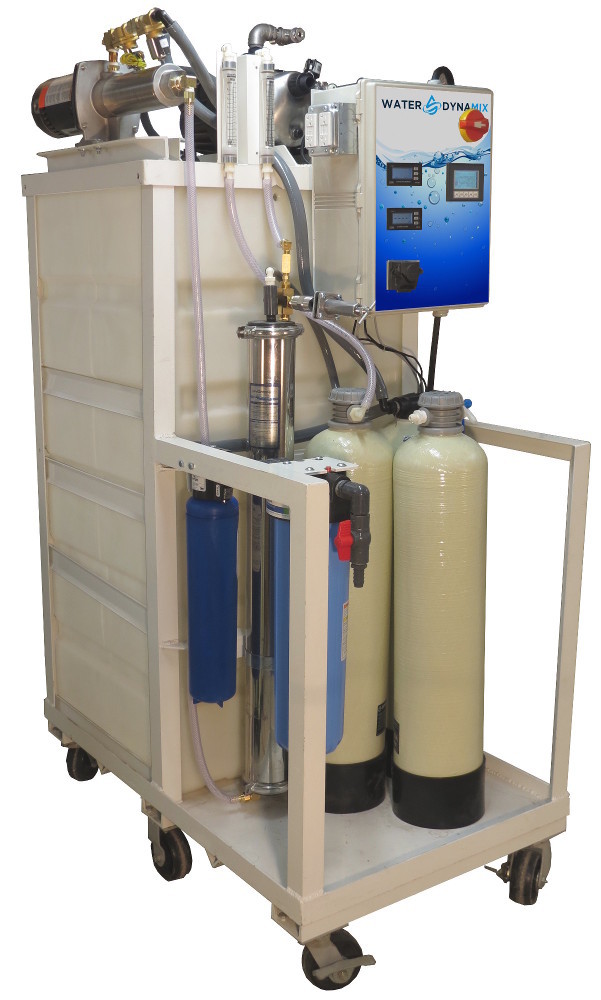

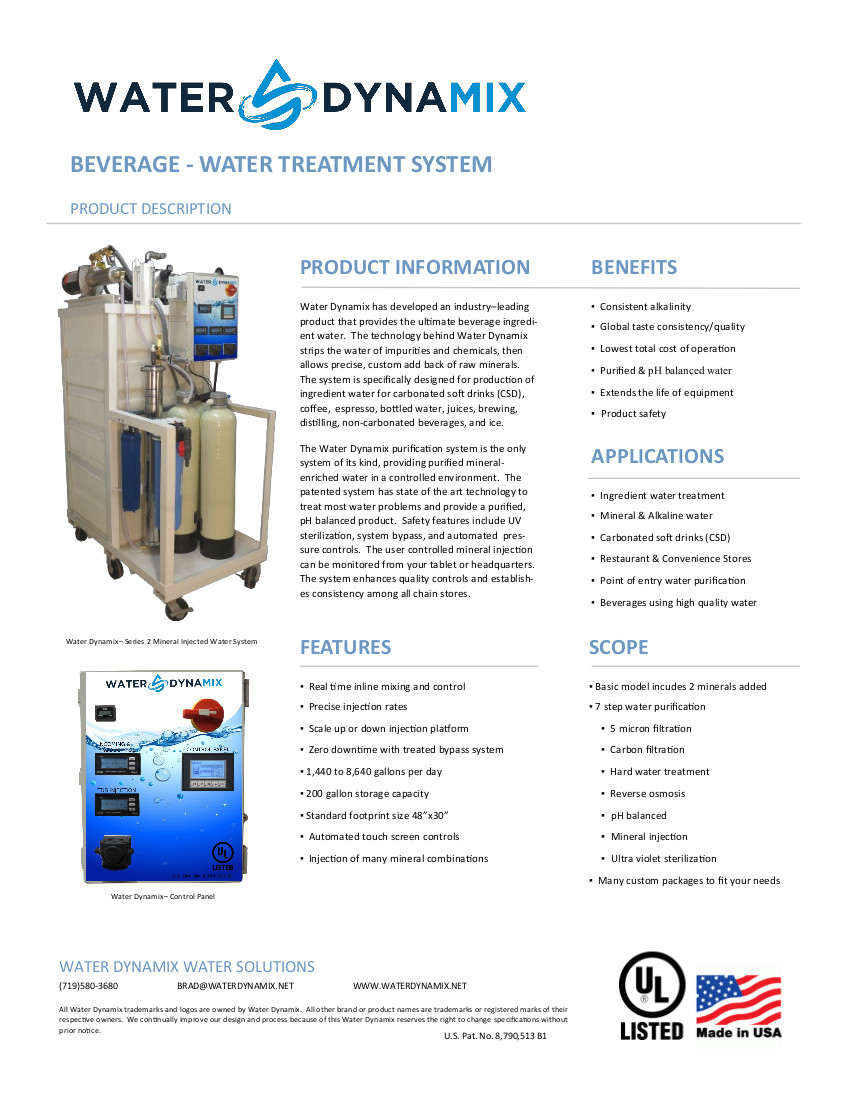

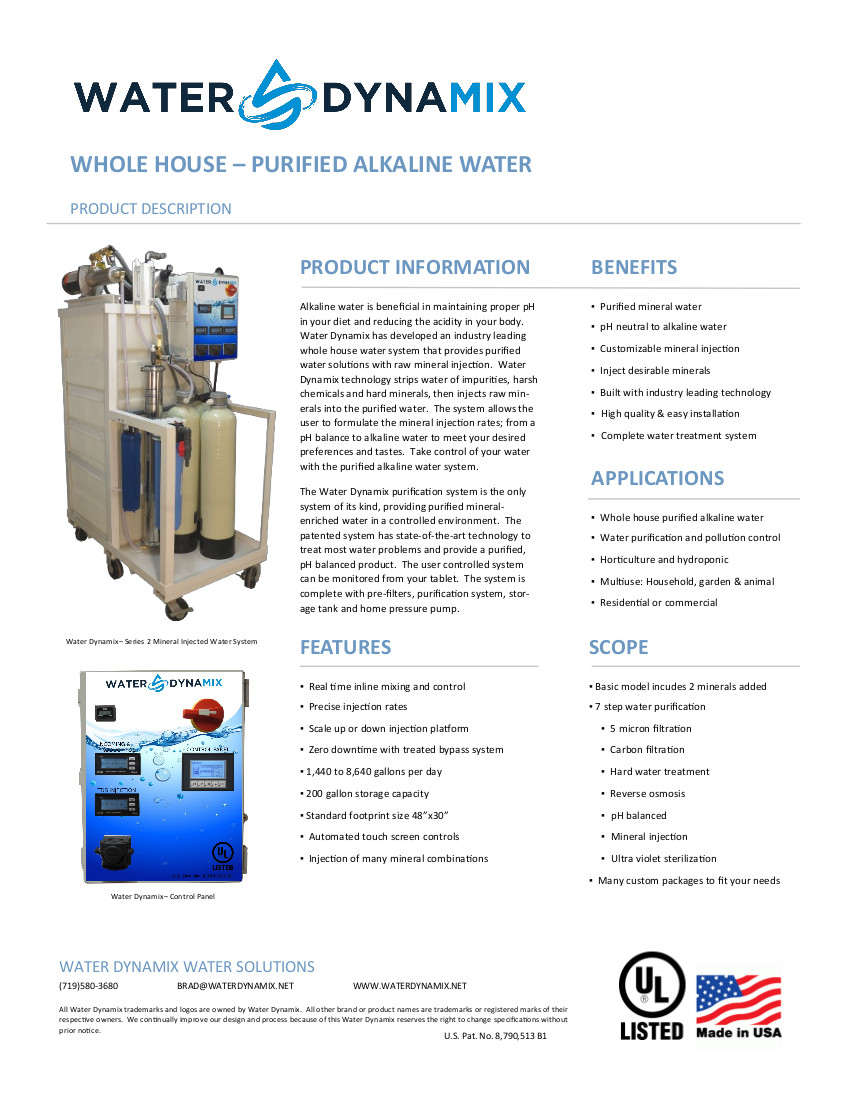

The Water Dynamix water treatment system is the only system of its kind, providing purified mineralenriched water in a controlled environment. The patented system has state of the art technology to treat most water problems and provide a purified product. The end user can easily control mineral injection and pH of the purified water. The system enhances quality controls and establishes consistency of your water.
Premium Water Treatment System
Features

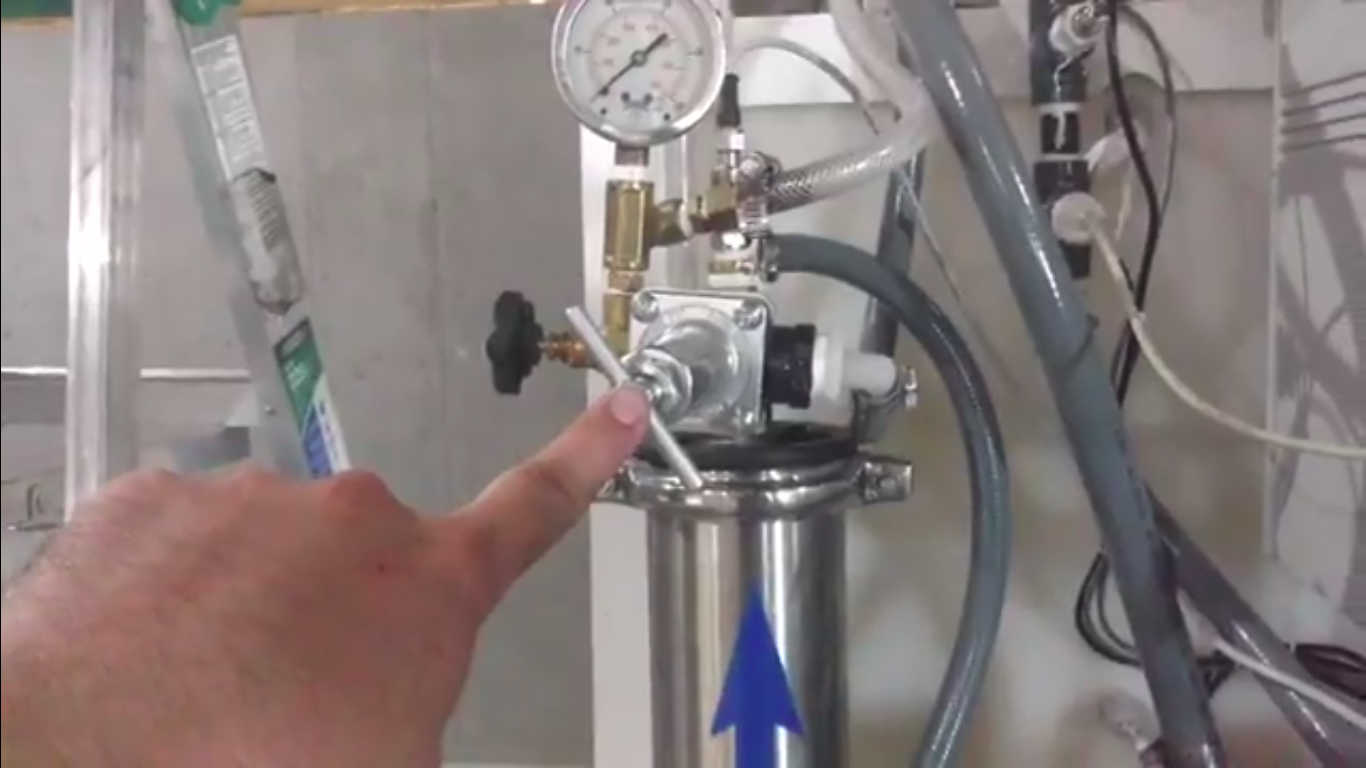

5 micron pre filtration
Filters the water supply to prevent sediment from injuring the water treatment system.
Carbon tank
The purpose of the activated carbon is to remove chlorine and other disinfectant products found in source water as well as Volatile Organic Compounds (VOCs) if present. Removal of chlorine is crucial to the life of the reverse osmosis membrane. It also removes undesirable tastes and odors commonly found in source water.
Reverse osmosis (RO)
Water treatment technology that uses a semipermeable membrane to remove ions, molecules and larger particles from drinking water.
Anti scale unit
The Anti-Scale unit is a Template Assist Crystallization unit designed to soften the water and inhibit scale formation in the Reverse Osmosis Membrane.
Mineral Injection / Customizable options
This patented water system is to further increase TDS in thewater to any level desired by the operator. Different customers may require different minerals or TDS levels. It is designed to be field adjustable to tailor the water to your specific needs. The mineral is injected into the water with precision to bring the resulting TDS to the desired level. The system constantly monitors the mineral content in the purified water and maintains the exact dissolved mineral mixture desired.
pH Balance / Customizable options
The pH balance feature is designed to reintroduce raw minerals to the purified reverse osmosis water to do two things: Increase the pH to 7.0 or above and replenish the water with valuable minerals.
Recycle loop valve
This valve diverts waste water back to the booster pump to balance the water system and reduce the amount of water waste.
Remineralization Pump
This component injects customizable amounts of dissolved minerals into the feed water, to maintain the desired TDS level.

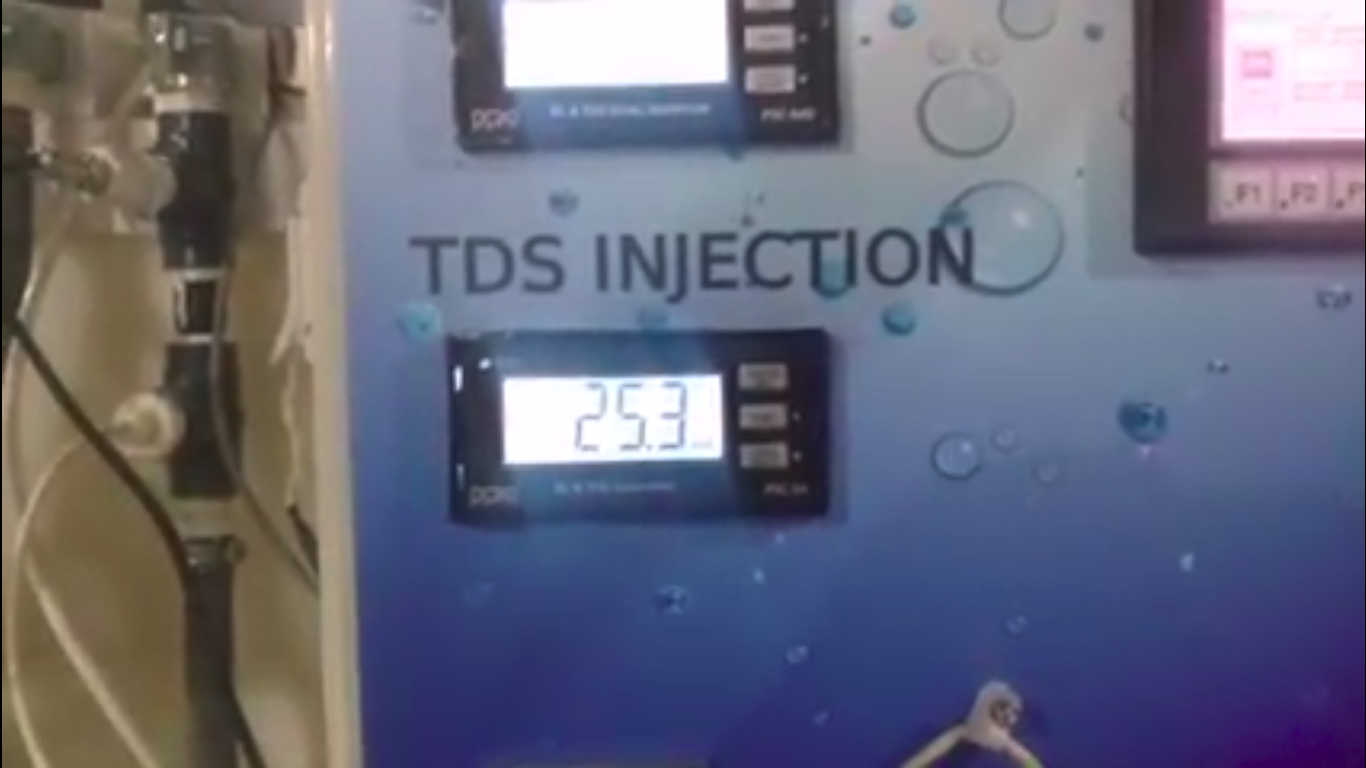

Remineralization Controller
This component controls the amount of minerals injected into the water. It senses the TDS of the water in real time, prior to going into the storage tank and adjusts the remineralization pump automatically to maintain the desired TDS range.
TDS monitor
This component monitors the TDS of the finished product water and the incoming water. Line 1 is the source water TDS, and line 2 is finished product water TDS that has been purified and remineralized.

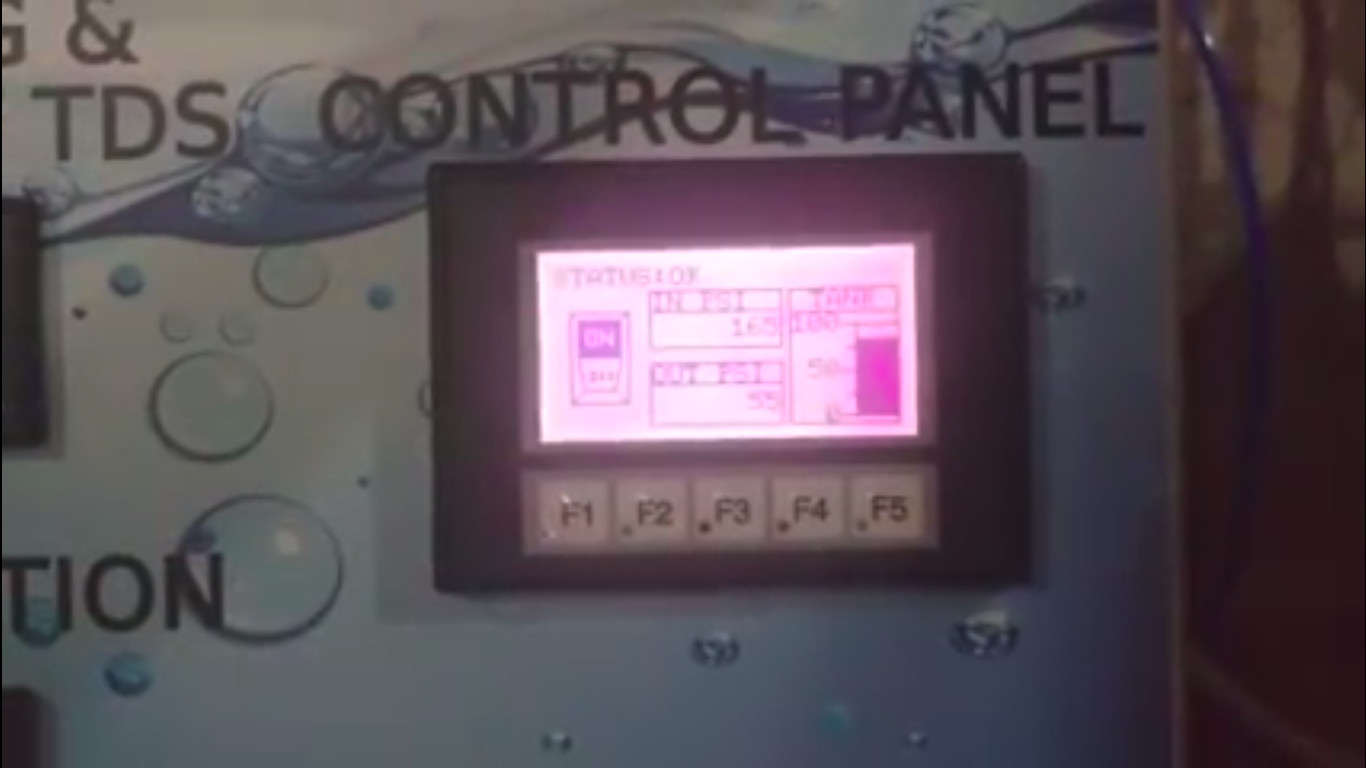

Control panel
From this screen you can turn your water system on and off, view incoming water PSI, outgoing water PSI, holding tank level, alarm codes, configure the desired remineralization settings, and view the runtime hours on each filter and other components.
Master disconnect
This turns off the power to the entire unit for repairs or servicing.
Waste flow meter
This flow meter lets you see what the waste off the reverse osmosis. You can also use this meter balance the flow of product and concentrate flows.
Product flow meter
This flow meter lets you see what the product water flow is going into the holding tank. You can also use this meter balance the flow of product and concentrate flows.
Reverse osmosis booster pump
The booster pump lets the water system work in lower than average flow environments and controls the incoming water flow. The PSI after the booster pump is customizable, recommending 160-190 PSI to have an efficient reverse osmosis.
Ultraviolet sterilizer
The Ultraviolet Sterilizer on the unit is designed to effectively kill any bacteria that may be present in the water flowing from the unit. Because there is no chlorine or other disinfectants in the purified water, it is necessary to ensure that the water is bacteria free leaving the storage tank.
Repressurization
The Grundfos repressurization pump is a self-contained unit that has the ability to flow from very small flows to large volume with no outside storage or control.
Patented Bypass system
The patented bypass system is designed to allow filtered dechlorinated water to be directed into the equipment supply line in the unlikely event the unit malfunctions. The unit will go into bypass only if the tank level is low, or if the repressurization pump fails to run. When any of these conditions happen, the bypass unit will energize and the corresponding warning indicators will show on the monitor to indicate that the unit is in bypass, and which system has faulted.
Storage tank
The storage tank on this unit is a 200 gallon capacity polyethylene tank. It is designed to be trouble and maintenance free.
